Građevinski materijal - Prodaja

Betonski čelik



  Dimenzije (mm)
5,5 6,0 8,0 10,0 12,0 14,0 16,0 18,0 19,0 20,0 22,0 24,0 25,0 28,0 30,0 32,0
Istegnuto (glatko)           x X X   x x x x x x X
Istegnuto (rebrasto)         x x X X X x x x
U koturu (glatko) x x x x x x x
U koturu (rebrasto)   x x x x

• Istegnuti betonski čelik dužine 6000 (12 000) mm

Armaturna mreža

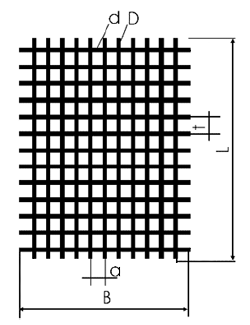

Armaturna mreza

Oznaka mreže (tip) Prečnik žice Rastojanje žice
Uzdužna D Poprečna d Uzdužna a Poprečna t
(mm) (mm) (mm) (mm)
Q 84 4,0 4,0 150 150
Q 92 4,2 4,2 150 150
Q 111 4,6 4,6 150 150
Q 126 4,0 4,0 100 100
Q 131 5,0 5,0 150 150
Q 139 4,2 4,2 100 100
Q 166 4,6 4,6 100 100
Q 188 6,0 6,0 150 150
Q 196 5,0 5,0 100 100
Q 221 6,5 6,5 150 150
Q 238 5,5 5,5 100 100
Q 257 7,0 7,0 150 150
Q 283 6,0 6,0 100 100
Q 331 6,5 6,5 100 100
Q 335 8,0 8,0 150 150
Q 378 8,5 8,5 150 150
Q 385 7,0 7,0 100 100
Q 424 9,0 9,0 150 150
Q 442 7,5 7,5 100 100
Q 503 8,0 8,0 100 100
Q 524 10,0 10,0 150 150
Q 567 8,5 8,5 100 100
Q 577 10,5 10,5 150 150
Q 636 9,0 9,0 100 100
Q 709 9,5 9,5 100 100
Q 785 10,0 10,0 100 100

Armaturna mreza

Oznaka mreže (tip) Prečnik žice Rastojanje žice
Uzdužna D Poprečna d Uzdužna a Poprečna t
(mm) (mm) (mm) (mm)
R 84 4,0 4,0 150 250
R 92 4,2 4,0 150 250
R 111 4,6 4,0 150 250
R 126 4,0 4,0 100 250
R 131 5,0 4,0 150 250
R 139 4,2 4,0 100 250
R 166 4,6 4,2 100 250
R 188 6,0 4,0 150 250
R 196 5,0 4,2 100 250
R 221 6,5 4,6 150 250
R 238 5,5 4,2 100 250
R 257 7,0 5,0 150 250
R 283 6,0 4,0 100 250
R 331 6,5 4,6 100 250
R 335 8,0 5,0 150 250
R 378 8,5 5,0 150 250
R 385 7,0 5,0 100 250
R 424 9,0 6,0 150 250
R 442 7,5 5,5 100 250
R 503 8,0 6,0 100 250
R 524 10,0 6,0 150 250
R 567 8,5 6,0 100 250
R 577 10,5 6,0 150 250
R 636 9,0 6,0 100 250
R 709 9,5 6,0 100 250
R 785 10,0 6,0 100 250

B = 2150mm
L = 6050mm



Istegnuti metal



Tip Veća dijagonala romba Manja dijagonala romba Debljina lima
IM 24/1 rolna 24 10 10
IM 42/1,5 42 20 1,5
IM 62/3 62 24 3,0
IM 62/3,5 62 24 3,5
IM 140/55 140 55 2,0
IM 140/55 140 55 3,0
IM 140/55 140 55 4,0

• Dimezije su 2000x1000mm (mogućnost poručivanja drugih dimenzija)

Zavarene i grifovane mreže



  Dimenzije (mm)
Prečnik žice Raspon otvora Širina Dužina
Zavarene 2 mm 12,5x50 mm 1000 mm 2000 mm
Zavarene 2 – 5 mm 50x50 mm 1000 (1250) mm 2000 mm
Grifovane 3,1 mm 35x35 mm 1000 mm 2000 mm
Grifovane 2,5 – 5 mm 50x50 mm 1000 (1250) mm 2000 (2500) mm




Ekseri – prečnik od Ø5 do Ø20 mm

Žica u koturu (kalibrisana) – prečnik od Ø2 do Ø5 mm

Bodljikava žica – prečnik Ø2 mm (težina kotura 17kg = 200m)

Pocinkovana žica – prečnik od Ø1,2 do Ø4 mm

Paljena žica – prečnik od Ø1,2 doØ 4 mm

Cement – 50 kg

Kreč hidrat – 25 kg

Građevinski podupirači – dužina 2,1 do 3,6 m
